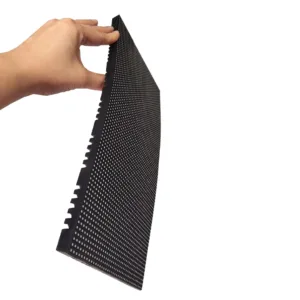

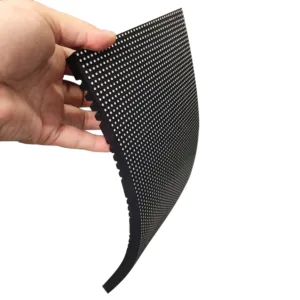

Flexible LED Display Module (Soft LED Module)

The Flexible LED Display Module is innovatively developed based on the concept of soft LED strips, enabling the module to bend and adapt to various installation needs. It supports the creation of curved screens, cylinders, waves, ribbons and other artistic shapes, offering breakthrough display technology and superior visual performance.
Compared with traditional rigid LED modules, it adopts a flexible structure and large-angle bending design, breaking conventional limitations and delivering smooth, elegant curves that create stunning artistic effects and vibrant visuals.

• Equipped with dedicated 16-bit high grayscale, high refresh constant-current IC, featuring anti-shadow circuitry to protect LEDs and prevent surge leakage.

• Standard module size 320 × 160 mm, with low current, low heat generation, high contrast and high refresh rate.

• XR soft module series is ideal for cylindrical screens, spiral screens, wave-shaped screens, ribbon screens, widely used in exhibition halls, science museums, urban planning centers, art galleries, museums, creative centers, and more.

• The cabinet adopts a high-strength metal structure with a segmented assembly process to effectively reduce seams between panels.

• The module uses a strong magnetic front installation system, with adjustable magnets to improve flatness. Supports front maintenance with special tools, suitable for limited-space installations.

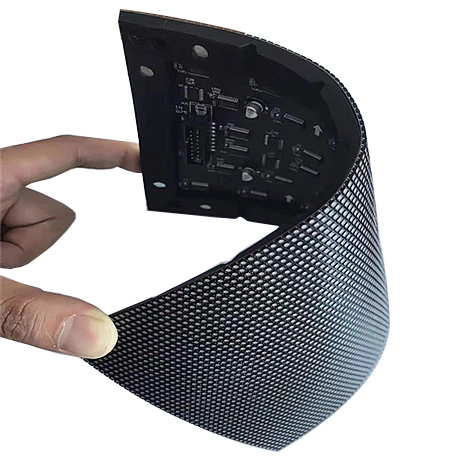

• PCB uses flexible FPC and a silicone bottom shell with excellent flexibility and static-resistant properties.

• Ultra-thin design with a thickness of only 8.6 mm, lightweight and space-saving.

• PCB is fixed to the bottom shell using copper columns + adhesive, forming a lock-type metal base for enhanced durability.

• Each module is equipped with 18 high-strength magnets, each up to 2000 GS, solving common issues like detachment and warped edges, ensuring better flatness and overall performance.
