P1.56 Outdoor COB LED Display

1. Core Advantages (High Definition + COB Durability)

• Pixel Pitch: 1.56mm / 1.984mm
 (High-density COB 1RGB1B for fine visuals in close-view applications)
• Pixel Density: 409,600 / 254,016 dots/㎡
 (Crisp image performance with strong detail retention)
• Brightness: 3000 nits
 (Outdoor-capable with strong visibility even under ambient light)
• Contrast Ratio: ≥10000:1
 (Deep blacks and richer color depth)
• Color Uniformity: ≥98% (3000–12000K adjustable)
 (Consistent color accuracy across large displays)

2. Installation & Maintenance (Flexible and Efficient)

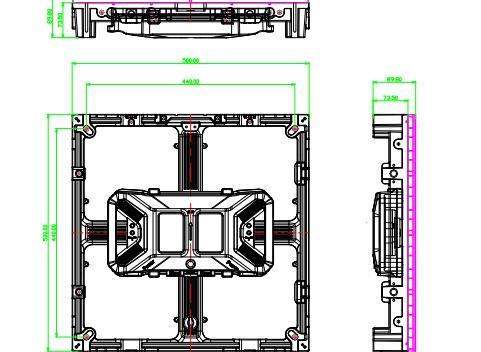

• Cabinet Size: 500 × 500 × 90mm
 (Perfect modular geometry for rental & fixed installations)
• Cabinet Weight: 9.5kg
 (Lightweight die-cast aluminum for quick handling)
• Mounting & Service: Front & Rear Installation / Maintenance
 (Fast operation and reduced downtime on site)
• Connection: Fast Locks
 (Strong structure for repeated assembling in rental scenarios)
• Supports Curve Splicing & Fine-Angle Applications
 (Adaptable to creative display shapes)

3. Stability & Low-Energy Performance

• Refresh Rate: ≥3840Hz
 (Flicker-free for broadcast and camera shooting)
• Power Consumption: ≤680W peak / ≤260W average (per ㎡)
 (Efficient power usage reduces running cost)
• Drive IC: Constant Current
 (Smooth grayscale and low-noise display)
• Frame Rate: 50/60Hz
 (Compatible with global playback systems)
• Input Voltage: AC 100–240V
 (Universal power support for global deployment)

4. Environmental Adaptability & Durability

• Protection Rating: IP65
 (Weather-resistant for demanding outdoor use)
• Operating Temp & Humidity: -20~+50℃, 10%~95%RH
 (Stable in multiple climates and weather environments)
• Storage Temp & Humidity: -40~+70℃, 10%~95%RH
 (Safe for long-distance shipping and long-term warehouse storage)
• LED Lifetime: ≥100,000 hours
 (Long-term operation with minimal light decay)
• MTBF: ≥10,000 hours
 (Reliable performance for 24/7 operation)
• Signal Interface: RJ45
 (Industry-standard connectivity)
• Power Interface: Aviation Plug
 (Secure and anti-loosening for rental)
