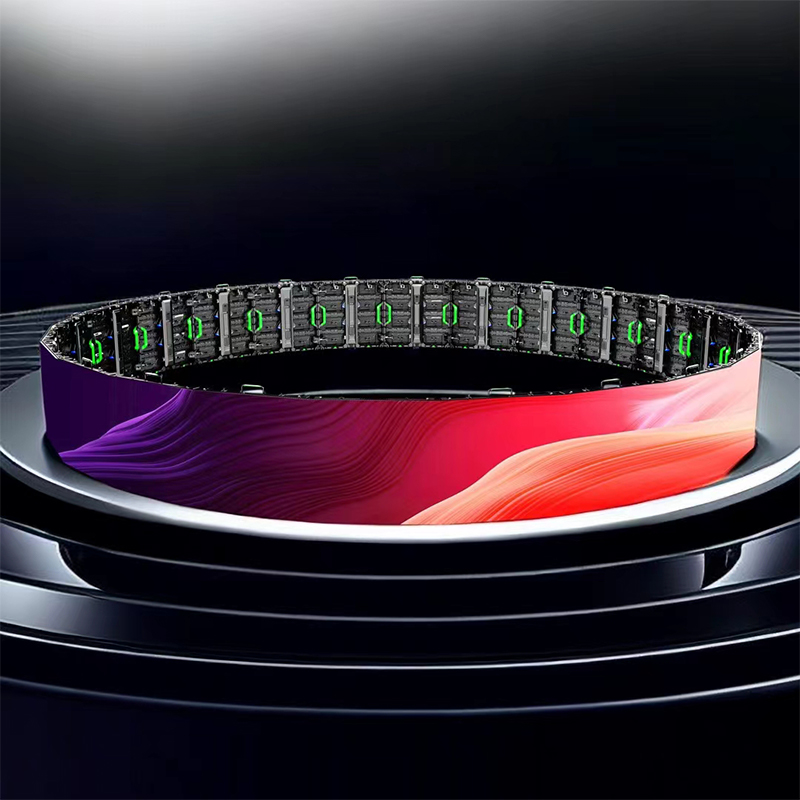

p2.9 Curved screen

Immersive LED display screens specially designed for indoor curved exhibitions

Module Size: 320 × 160 × 12 mm

Pixel Configuration: 1R1G1B

Current / Max Power: 6A / 30W

Weight: ≈ 0.6 kg

Driving Type: Constant Current

Interface: HUB75E

Brightness (White Balance): ≥ 5000 cd/㎡

Refresh Rate: ≥ 3840 Hz

Viewing Angle (H/V): 140° / 120°

p2.9 Curved screen

I. Ultra-Clear Visual Performance
  • Pixel Pitch: 2.9762mm — smooth, fine image quality
  • Pixel Density: 112,896 dots/㎡ — high-definition detail rendering
  • Brightness / Contrast: 1000 cd/㎡ + ≥6000:1 — vivid visuals in indoor environments
  • Wide Viewing Angle: 160° (H) / 140° (V) — accurate colors from any angle
  • Refresh Rate: 7680Hz — flicker-free motion, ideal for livestream / events
  • Adjustable Color Temperature: 6500K — fits different display styles

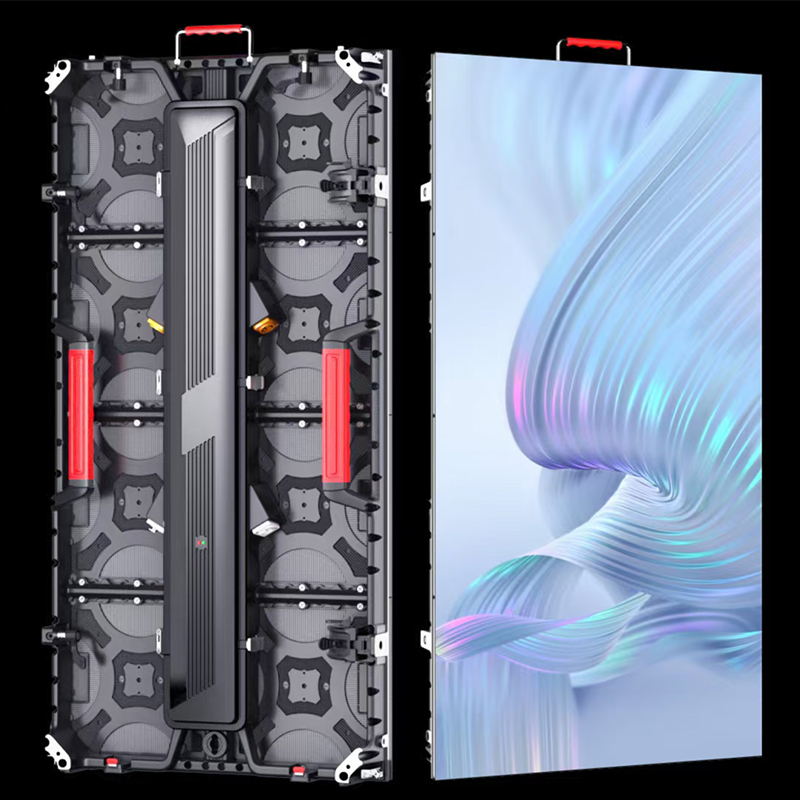

II. Curve-Friendly Cabinet Design
  • Lightweight Aluminum Cabinet — only 7.1kg per panel
  • Standard Size: 500 × 500mm — precise curved splicing
  • Rear Maintenance — no screen removal required, lower labor cost
  • Indoor Rating: IP40 — ideal for showrooms, brand stores, stages

III. Stable Performance & Energy Efficiency
  • Wide Voltage: AC 110–220V — suitable for global installations
  • Low Power Usage: Avg. 154W/㎡ — energy-saving and cost-effective
  • Operating Temp: -20℃ to +45℃ — adapting to various climates
