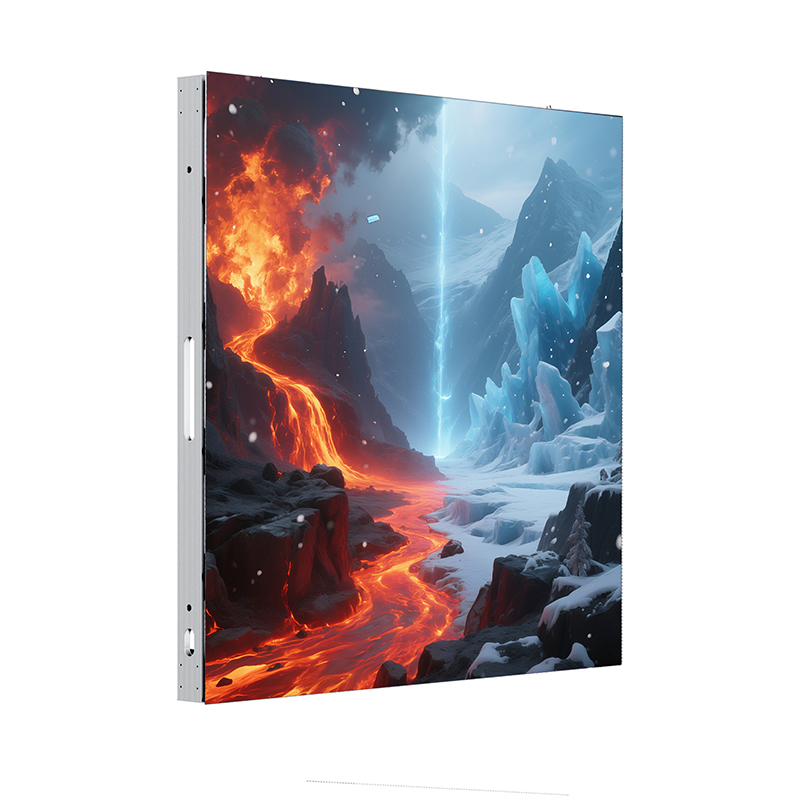

Outdoor Fixed LED Display Series

The outdoor fixed LED display series is engineered for high-performance outdoor advertising and information display projects.
LIHE delivers customized LED solutions with excellent brightness, durability, and long-term stability.
This series supports various pixel pitches to meet different viewing distances and project budgets.
It is ideal for billboards, public spaces, transportation hubs, and commercial installations.

High Brightness for Clear Outdoor Visibility

This outdoor fixed LED display ensures excellent visibility under direct sunlight.
Brightness reaches ≥5000 nits for S5/S6 and ≥7000 nits for S8/S10.
The display maintains clarity in bright outdoor environments.
A wide viewing angle of 140° horizontal and vertical ensures consistent image quality.

Multiple pixel pitch options are available:

• S5 / S6 / S8 / S10
  This flexibility allows optimized performance for different distances and applications.

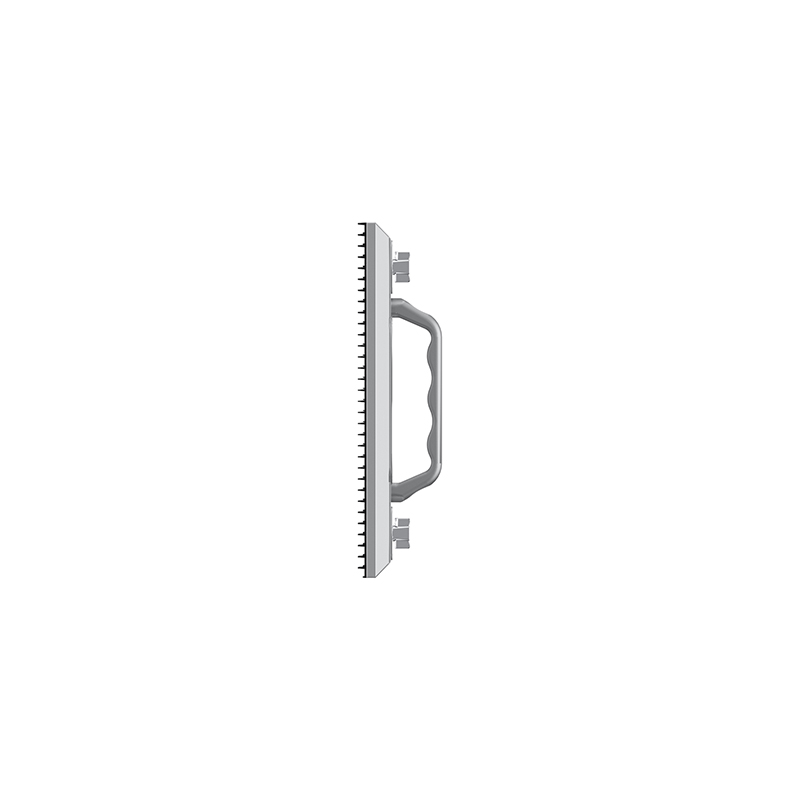

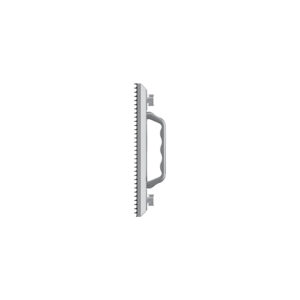

Durable Cabinet Structure & Modular Design

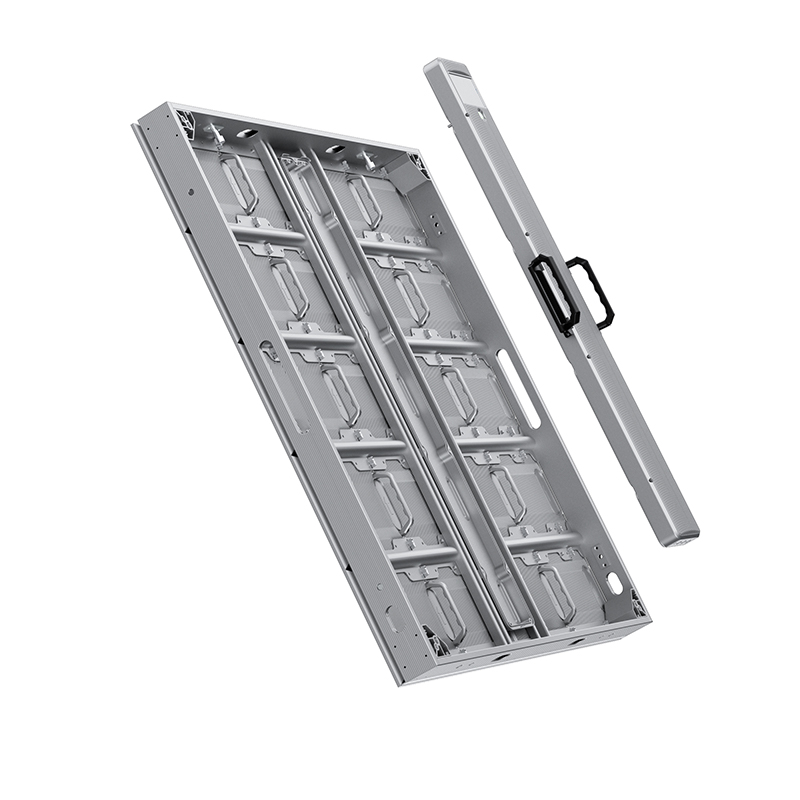

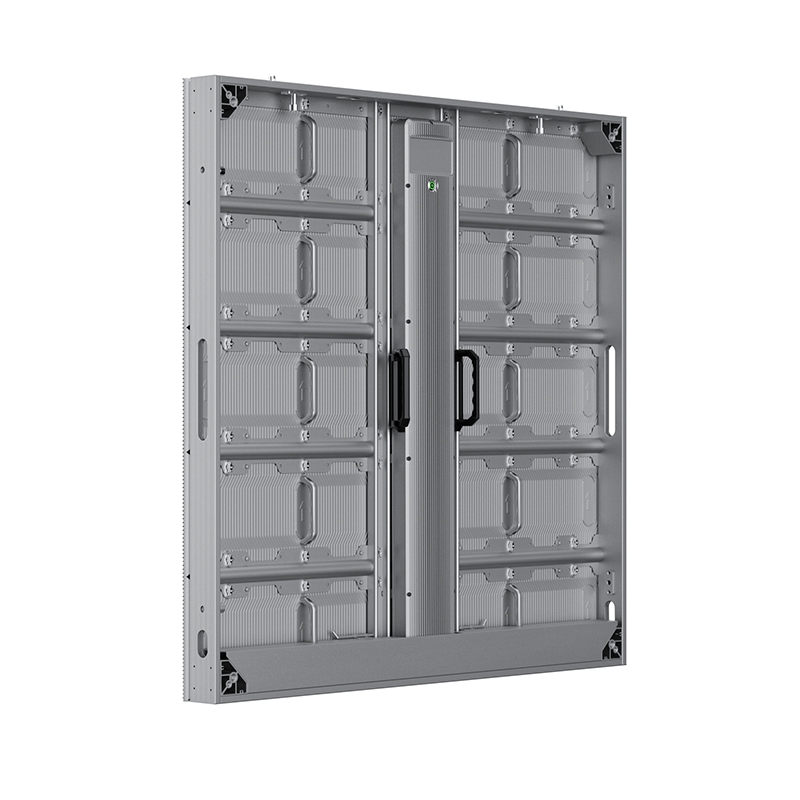

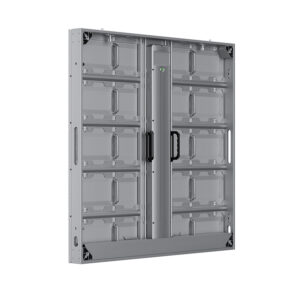

The display uses a robust extruded aluminum cabinet.
This material improves strength and heat dissipation.
The cabinet size is 1000 × 1000 × 79.5 mm, suitable for large installations.

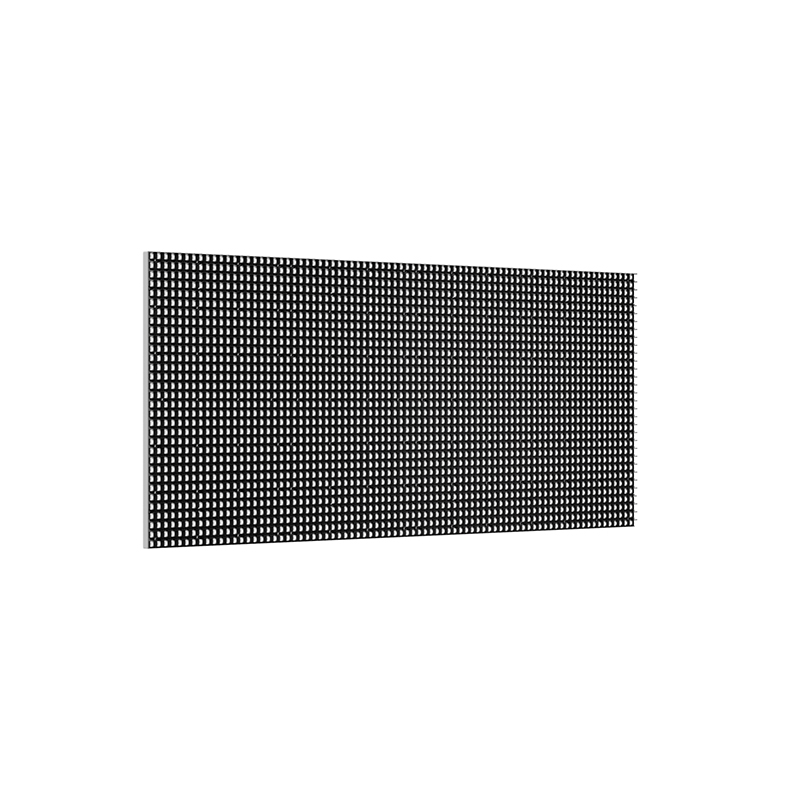

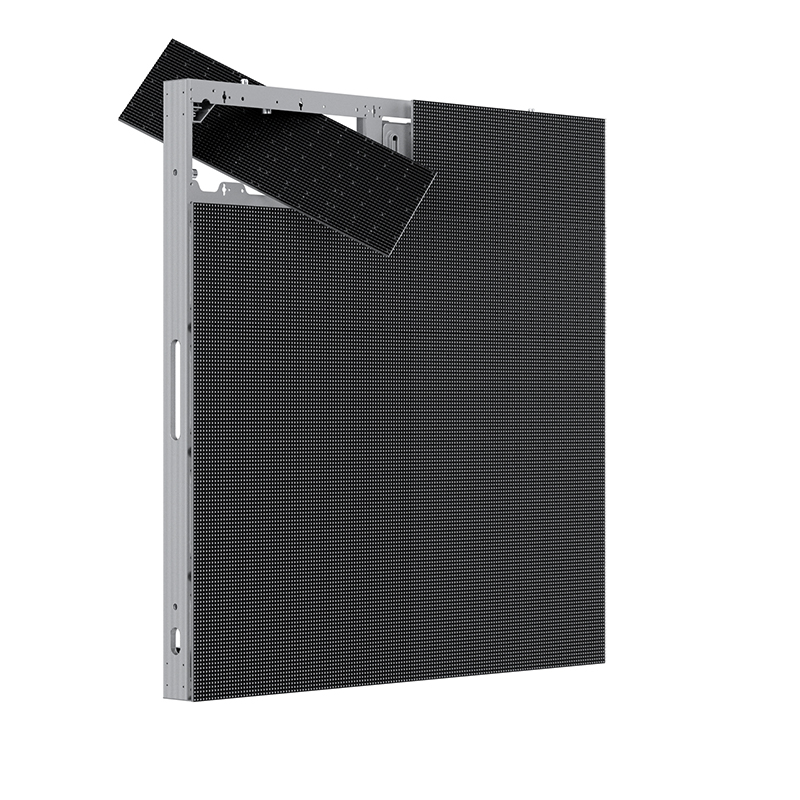

The modular structure includes 500 × 200 mm LED modules.
This design simplifies maintenance and replacement.
Each cabinet weighs 25 kg, ensuring stability for permanent outdoor use.

Smooth Display Performance & Stability

This outdoor fixed LED display delivers high-quality visual performance.
It supports 14–16 bit grayscale for smooth color transitions.
The refresh rate reaches ≥3840 Hz, ensuring flicker-free images.

Different driving modes are optimized for each pixel pitch.
This ensures stable operation and consistent display performance.

Energy Efficiency & Global Compatibility

The system supports AC 100–240V input, suitable for global projects.
Peak power consumption is ≤550 W/㎡.
Average power consumption is ≤180 W/㎡.
This reduces long-term operating costs.

IP66 Protection for Harsh Environments

The display features IP66 protection on both front and rear sides.
It resists dust, rain, and extreme weather conditions.
The working temperature range is -40℃ to +50℃.
It performs reliably in both hot and cold climates.

Humidity tolerance ranges from 10% to 90% RH.
This ensures stable operation in various environments.
